Part number of agricultural battery:

12.8V 10Ah LFP High Rate Batter1

Features:

• Start power Lithuim-ion battery Pack
• Use in Agricultural machine
• Charging EQ to longer serivce life
• Long running life, High stability, Low maintenance costs
• Lead-Aicd battery replacement solution
• Fast charging
• High discharge rate 50C/3~5 sec
• Low-power consumption，Long standby time
• Small, Light, Easy to carry, Highly integrated
• RoHS eco-friendly design

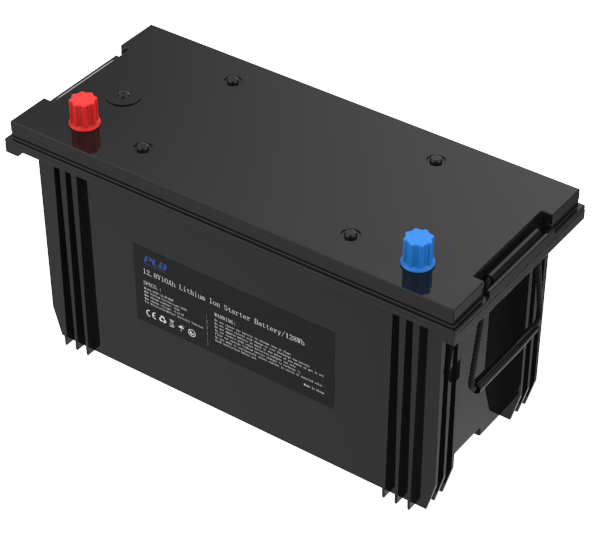

12.8V 10Ah LFP High Rate Agriculture Start Battery

1.Specification of Lawn mower batteries：

Loading, please wait...

Item	Parameter
Model	12.8V 10Ah LFP High Rate Battery
Model Capacity	10Ah
Minimum Capacity (0.5C，A)	9.2Ah
Rated Voltage	12.8V
Max Charge Voltage	14.6V
Cut-Off Voltage	8.4V
Standard Charge And Discharge Current	10A
Max Continuous Charge Current	20A
Max Continuous Discharge Current	500A/5S
Weight (Approx. Includes Case)	～2.5Kg

Loading, please wait...

Item	Parameter
Impedance (Max, At 1000Hz.)	≤20mΩ
The packing way	Plastic shell
Charge Method (CC)	2A(14.6VCut Off)
Charge Method (CV)	14.6V(0.2ACut Off)
Operating Temperature Charging	0℃～45℃
Operating Temperature Discharge	-20℃～60℃
Operating Temperature Storage	-20℃～45℃

2.Bock diagram of Lawn mower batteries：

Intelligent balance management, imported components, intelligent monitoring of single cells, adjust the battery differential voltage, prolong the service life of the battery pack, low power consumption and fast charging design, improve customer experience.

3.Outline Drawing of Lawn mower batteries：

Open molded plastic casing, sealed by glue process and support IP45 waterproof. Battery cells are connected with nickel clap copper sheets, small internal resistance and enough output , external bipolar output, easy connection, the actual external size: 216mm*124mm*95.9mm.
