Automotive battery

Part number of lithium car starter battery:

12.8V 20Ah LFP High Rate Battery

Features of lithium car starting battery:

• Use for vehicle power startup
• Charging EQ to longer serivce life
• Long running life, High stability, Low maintenance costs
• Lead-Aicd battery replacement solution
• Fast charging
• High discharge rate 50C/3~5 sec
• Low-power consumption,Long standby time
• Small, Light, Easy to carry, Highly integrated
• RoHS eco-friendly design

Agricultural Battery

1.Specification of lithium 12v car battery

Loading, please wait...
Model12.8V 20Ah LFP High Rate Battery
Model Capacity20Ah
Minimum Capacity (0.5C,A)18.4Ah
Rated Voltage12.8V
Max Charge Voltage14.5V
Cut-Off Voltage8.4V
Standard Charge And Discharge Current20A
Max Continuous Charge Current40A
Max Continuous Discharge Current1000A/5S
Weight (Approx. Includes Case)~4Kg
Loading, please wait...
Impedance (Max, At 1000Hz.)≤20mΩ
The packing wayPlastic shell
Charge Method (CC)4A(14.6VCut Off)
Charge Method (CV)14.6V(0.4ACut Off)
Operating Temperature Charging0℃~45℃
Operating Temperature Discharge-20℃~60℃
Operating Temperature Storage-20℃~45℃

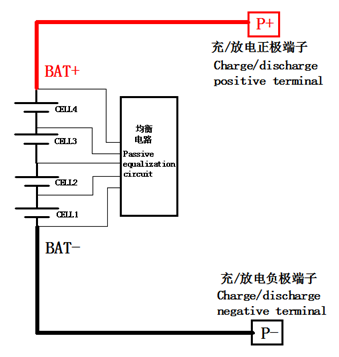

2.Bock diagram of lithium 12v car battery

Intelligent balance management, imported components, intelligent monitoring of single cells, adjust the battery differential voltage, prolong the service life of the battery pack, low power consumption and fast charging design, improve customer experience.

Lithium 12v 10ah

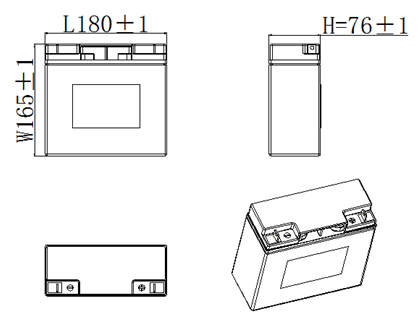

3.Outline Drawing of lithium 12v car battery

Open molded plastic casing, sealed by glue process and support IP45 waterproof. Battery cells are connected with nickel clap copper sheets, small internal resistance and enough output , external bipolar output, easy connection, the actual external size: 180mm*165mm*76mm.

Lithium 12v 20ah
