Part number of electric motorcycle battery:

50.4V 30Ah NCM Battery

Features of electric motorbike battery:

• Power Lithuim-ion battery Pack
• Use in Two Wheel Electric Vehicles, Motorcycle, Tuk-tuk, AGV, Low Speed Vehicles(LSV)
• Specialized Protrction IC with more stable,safety
• Long running life, low maintenance costs
• Easy to carry with handle design
• IP54 Rating
• Wide operating temperature range
• High capacity density to have a range of long miles on a charge
• Low power consumption,Super long standby time
• Portection with Overcharge / Overdischarge / Overcurrent / Short circuit / temperature protection to ensure safety while using
• RoHS eco-friendly design
• IEC62619/UN38.3 certification
• PCM & cell double protection to ensure the scooter lithium battery safety

1.specification of electric motorcycle battery pack：

Loading, please wait...

Item	Parameter
Model	50.4V 30Ah NCM Battery
Model Capacity	30Ah
Minimum Capacity (0.5C，A)	29.4Ah
Rated Voltage	50V
Max Charge Voltage	58.8V
Cut-Off Voltage	39.2V
Standard Charge And Discharge Current	15A
Max Continuous Charge Current	30A

Loading, please wait...

Item	Parameter
Max Continuous Discharge Current	30A
Weight (Approx. Includes Case)	～11Kg
Impedance (Max, At 1000Hz.)	≤50mΩ
Charge Method (CC)	6A（58.8VCut Off）
Charge Method (CV)	58.8V（0.6ACut Off）
Operating Temperature Charging	0℃～45℃
Operating Temperature Discharge	-20℃～60℃
Operating Temperature Storage	-20℃～45℃

2.Bock diagram of electric motorcycle battery：

The product adopts a hardware protection solution, same port input and output, supports single-cell voltage monitoring function, temperature monitoring function, current monitoring function, and equalization function to ensure stable performance, safety and long-term use of the product.

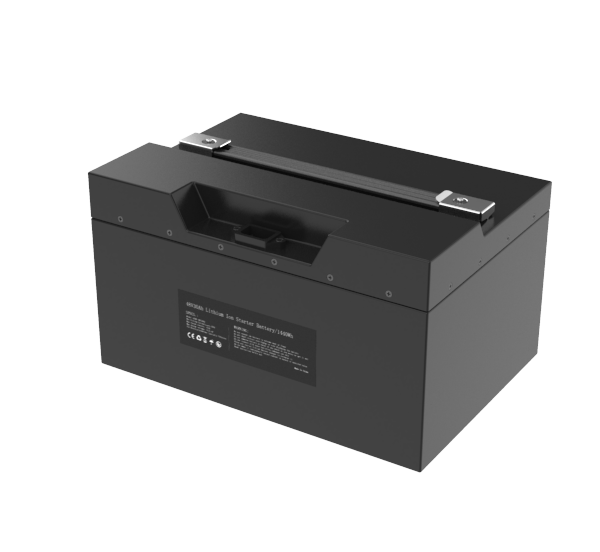

3.Outline Drawing of electric motorcycle battery：

Fashion design, comes with retractable handle, glue sealing process, meets IP54 requirements, supports most of the operation environment, external professional plug for electric vehicles, matching most electric vehicles on the market, actual size: 315mm*180mm*220mm, Small size and high capacity.

4.Electric Motorcycle Battery Size：

PLB high-quality NCM batteries, assisted by resistance welding process, mold opening process, internal shock-proof, high capacity and sufficient power, specially designed for electric vehicles, internal shock absorption, small external dimensions, easy to install and change, the actual size is only 315mm*180mm*220mm.
