Part number of sightseeing vehicle:

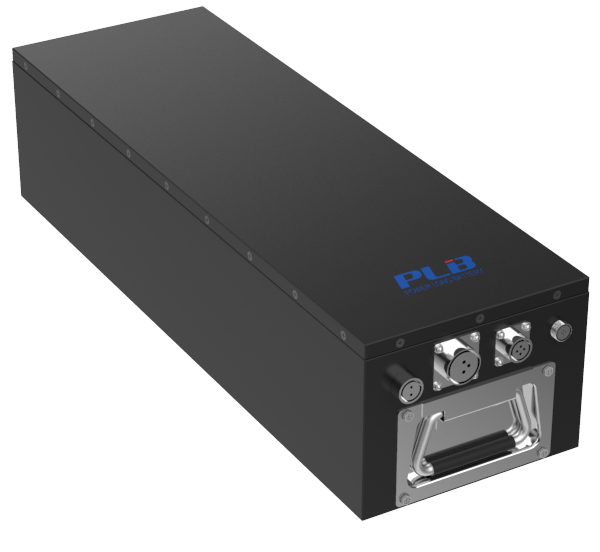

50.4V 60Ah NCM Battery

Features of sightseeing vehicle:

• Power Lithuim-ion battery Pack
• Use in Sightseeing car, golf cart ect
• Packaging with aluminum case
• Long running life, High stability, Low maintenance costs
• Small, Light, Easy to carry, Highly integrated
• IP54 Rating
• Revers polarity protection
• 3D load-bearing structure design，match many kind of application
• RS485 commnication for stable Data-transmission
• Anti-seismic design in any bad condition
• Low-power consumption,Long standby time
• Cover protection & warning design
• RoHS eco-friendly design
• Pack approved by IEC62619/UN38.3 certification
• Head PC to monitor the pack state in accordance customers' need to adjust spec

1.Specification of sightseeing vehicle：

Loading, please wait...

Item	Parameter
Model	50.4V 60Ah NCM Battery
Model Capacity	60Ah
Minimum Capacity (0.5C，A)	58.8Ah
Rated Voltage	51.1V
Max Charge Voltage	58.8V
Cut-Off Voltage	39.2V
Standard Charge And Discharge Current	30A
Max Continuous Charge Current	60A
Max Continuous Discharge Current	120A
Weight (Approx. Includes Case)	～23.6Kg

Loading, please wait...

Item	Parameter
Impedance (Max, At 1000Hz.)	≤50mΩ
Factory Voltage	≥51.1V
Mode of Communication	RS485
Charge Method (CC)	12A（58.8VCut Off）
Charge Method (CV)	58.8V（0.12ACut Off）
Operating Temperature Charging	0℃～45℃
Operating Temperature Discharge	-20℃～60℃
Operating Temperature Storage	-20℃～45℃

2.Bock diagram of sightseeing vehicle：

Highly intelligent management of battery packs, safe, reliable and stable performance protection design, impedance tracking and ampere-hour estimation, high-precision SOC, charge balance management, battery data information can be exchanged with PLC through dedicated communication, remote monitoring, online debugging, A dedicated APP monitors the battery status for easy maintenance.

3.Outline Drawing of sightseeing vehicle：

The SPCC shell design scheme is full of sense of science and technology. The dual-handle design is convenient for installation and transportation. The output interface is dust-proof and foolproof design to avoid random plugging and short circuit. The three-sided load-bearing three-dimensional design supports multi-sided placement and is suitable for a variety of different models; actual Size: 581mm*187mm*143mm.
