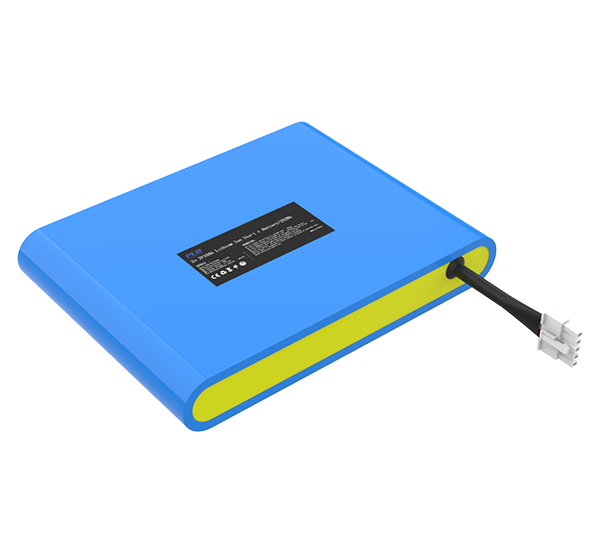

Intelligent Cleaning Robot Battery

Part number of Robotic Vacuum battery:

25.6V 10Ah LFP Battery

Features of robot vacuum cleaner battery:

• Power Lithuim-ion battery Pack
• Use in Electric cleaning devices, Vacuum Cleaning Robot ect.
• Protection IC,stable working
• Long running life, High stability, Low maintenance costs
• High capacity density for longer miles on a charge
• IP42 Rating
• Wide operating temperature range
• Low-power consumption,Long standby time
• Portection with Overcharge/Overdischarge/Overcurrent/Short circuit/temperature protection to ensure safety while using
• RoHS eco-friendly design
• Pack approved by IEC62619/UN38.3 certification
• PCM & cell double protection to ensure the battery safety

Robot Vacuum Cleaner Battery

1.Specification of Robotic Vacuum battery

Loading, please wait...
Model25.6V 10Ah LFP Battery
Model Capacity10Ah
Minimum Capacity (0.5C,A)9.6Ah
Rated Voltage25.6V
Max Charge Voltage29V
Cut-Off Voltage17.6V
Standard Charge And Discharge Current3A
Max Continuous Charge Current5A
Loading, please wait...
Max Continuous Discharge Current10A
Weight (Approx. Includes Case)~2.5Kg
Impedance (Max, At 1000Hz.)≤80mΩ
The Factory Voltage≧25.6V
Charge Method (CC)3A 29.2VCut Off
Charge Method (CV)29.2V 0.3ACut Off
Operating Temperature Charging0℃~45℃
Operating Temperature Discharge-20℃~60℃
Operating Temperature Storage-20℃~45℃

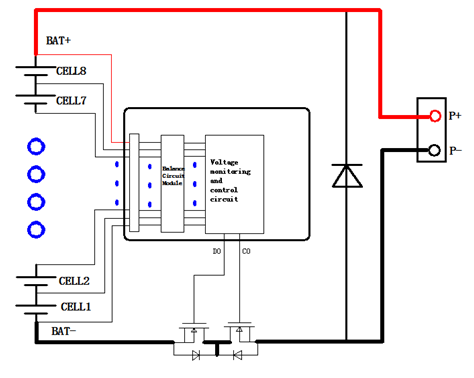

2.Bock diagram of Robotic Vacuum battery

The product adopts a pure hardware protection scheme, same port input and output, supports single-cell voltage monitoring function, temperature monitoring function, current monitoring function, and equalization function to ensure stable performance, safety and long-term use of the product.

Robotic Vacuum Battery

3.Outline Drawing of Robotic Vacuum battery

Using high-quality lithium iron phosphate batteries, resistance welding assembly, reasonable arrangement scheme to reduce the internal voltage difference of the battery pack, glass fiber board insulation, PVC packaging molding, meeting IP42 requirements, actual size: 227mm*97mm*68mm, compact and convenient.

Robotic Vacuum Battery
