Lithium Replacement

Part number of battery lithium ion 12v 100ah:

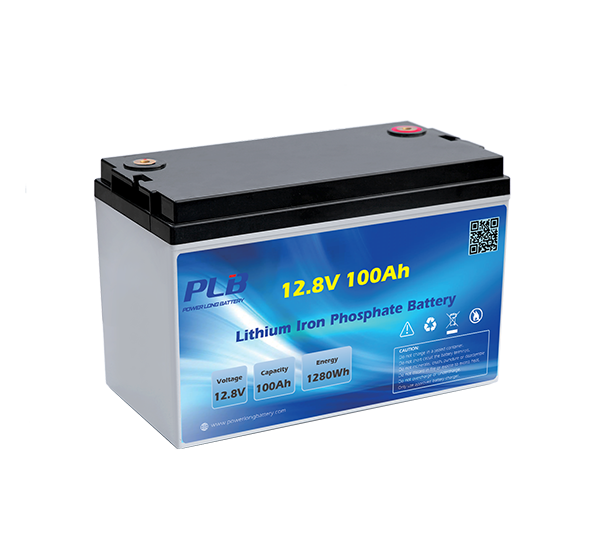

12.8V 100Ah LFP Battery


• Lead-Aicd battery replacement solution
• Use in startup power, backup power, Security Alarm System battery ect
• Protection IC,stable working
• Long running life, High stability, Low maintenance costs
• Charging EQ to longer serivce life
• Fast charging
• IP45 Rating
• Low-power consumption,Long standby time
• Small, Light, Easy to carry, Highly integrated
• RoHS eco-friendly design
• PCM & cell double protection to ensure the battery fpr Recreational vehicles safety

Battery Lithium Ion 12v 100ah

1.Specification of Recreational vehicles

Loading, please wait...
Model12.8V 100Ah LFP Battery
Model Capacity100Ah
Minimum Capacity (0.2C,5A)98Ah
Rated Voltage12.8V
Max Charge Voltage14.6V
Cut-Off Voltage8.4V
Standard Charge And Discharge Current50A
Max Continuous Charge Current100A
Max Continuous Discharge Current100A
Loading, please wait...
Weight (Approx. Includes Case)~12.5Kg
Impedance (Max, At 1000Hz.)≤30mΩ
The Packing WayPlastic Shell
Charge Method (CC)20A(14.6VCut Off)
Charge Method (CV)14.6V(2ACut Off)
Operate Temperature Charge0℃~45℃
Operate Temperature Discharge-20℃~60℃
Operate Temperature Storage-20℃~45℃
Maximum series number≤4

2.Bock diagram of Recreational vehicles

Hardware protection BMS, input and output synchronous, support to monitor the each battery cell's voltage, battery's temperature and current to make sure the battery with stability performance, safety and long-term life.

Recreational Vehicles

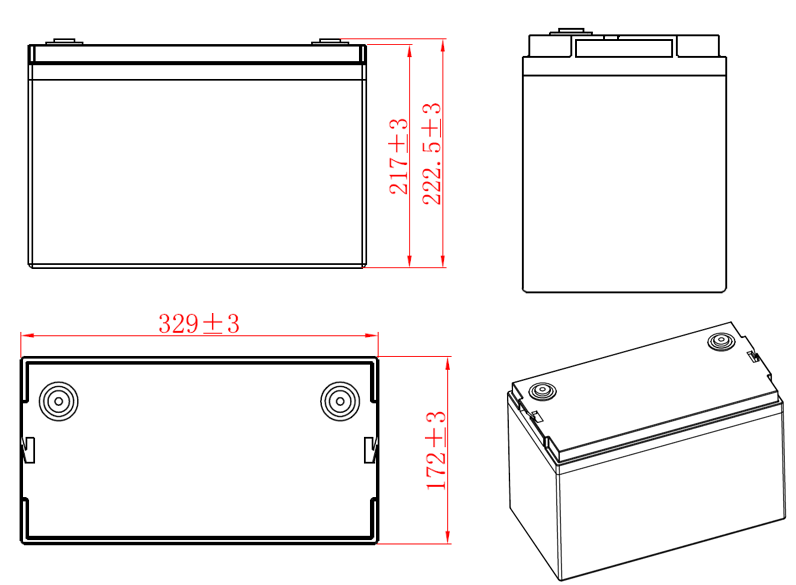

3.Outline Drawing of Recreational vehicles

Own lastic case mould with glueing process, meet IP45 standards and built in M8 interface, that could reduces any possibility of water vapor intrusion. Draw strap handle, quick disassembly and easy to take. size: 329*172*217mm.
