lfp 3000, verified by DOE optimization experiment, strict selection and supervison of incoming material, strict manufacturing process controlled, to ensure the battery cell high consistency on static state of initial matching, charge-discharge dynamic process and attenuation performance of the long-term cycling.
Cell Part number of lfp 3000:
26650-3000mAh, lithium iron phosphate chemical system
Cell dimension:
Diameter: 26.3±0.2mm, Height: 65.3±0.3mm（see right picture ）
Application：
• Communication base station: 5G distributed communication terminal base station.
• Database UPS backup power supply: short-term backup power supply for databases of large technology companies such as Google, Tencent; backup power supply for large shopping mall databases.
• Medical equipment: mobile medical ventilator, mobile electrocardiograph, AED defibrillator, etc.
• Field robots: warehouse automatic racking robots, workshop material transfer robots, restaurant automatic food delivery robots, express delivery automatic sorting robots, etc.
• Power tools: electric lawn mowers, hand-held electric vacuum cleaners, electric sweepers, electric lifebuoys, electric lifeboats, etc.
Characteristic advantages of lfp 3000：
• Select first class raw material suppliers to ensure consistency and stability of cells.
• Select first class raw material suppliers to ensure consistency and stability of cells. Build three-dimensional channel conductive network with array-type high-conductivity carbon nano-tubes and super conducting carbon black. Improve the structure design of multi-tabs parallel. Apply spherical multi-direction graphite of same nature for cathode, to reduce internal resistance, and enhance super high C-rate discharge ability and high C-rate continuous charge ability.
• Support 10C continuous discharge, 20C pulse discharge. 3C charge/discharge; ＞4000 cycles @100% DOD. 5C charge/discharge;＞1500 cycles @100% DOD.
Want more choices, you can have a look at 26650 lithium ion battery(3800mAh).
Parameter | Product specification |
|---|---|
| Typical Capacity | 3000mAh（0.5C） |
| Minimum Capacity | ≥2970mAh（0.5C） |
| Nominal Voltage | 3.2V |
| Energy Density | 113Wh/kg |
| Cell AC Impedance (1KH) | ≤10mΩ |
| Cell Weight (g) | About 85g |
| Operation Voltage | 2.0~3.65V |
| Standard Charge Model | Cell is charged with constant current of 1C to 3.65 V, and the it is converted to 3.65V constant voltage charging until the charging current is less than 0.02C (60mA). |
| Standard Charge Current | 3000mA |
| Max. Charge Current | 6000mA |
Parameter | Product specification |
|---|---|
| Standard Discharge Current | 3000mA |
| Max. Discharge Current (Continuous) | 30000mA |
| Max. Discharge Current (Long Pulse) | 45000mA，60s |
| Max. Discharge Current (Short Pulse) | 60000mA，10s |

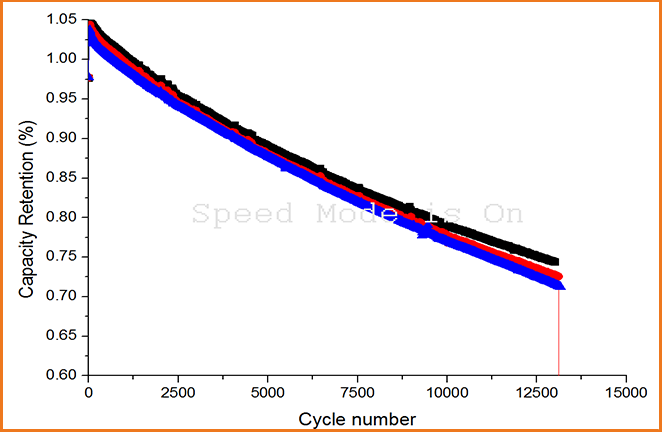

| 100%DOD cycle life | ≥3000Cycles |
| 80%DOD cycle life | ≥6000Cycles |
| 50%DOD cycle life | ≥8000Cycles |
| Charge Operating Temperature | 0℃~45℃ (Environment temperature） |
| Discharge Operating Temperature | -20℃~60℃ (Environment temperature |
| Storage Temperature | -20℃~45℃ |
