Small PV Energy Storage Battery

Part number of lithium battery for solar storage:

12.8V 13.2Ah LFP Battery


• Lithuim-ion battery Pack
• Use in PAYG, Solar energy storage, home energy storage system
• Protection IC,stable working
• Long running life, low maintenance costs
• Wide operating temperature range
• Fullfil all DC12V power supply
• Complete protection functions
• RoHS eco-friendly design
• Fullfil all DC12V power supply
• Meet RoHS eco-friendly design
• Cell approved by UL1642, IEC62133, UN38.3 certification
• PCM & cell double protection to ensure the battery safety

Battery in Pv System

1.Specification of lithium ion battery for solar storage

Loading, please wait...
Model12.8V 13.2Ah LFP Battery
Model Capacity13.2Ah
Minimum Capacity (0.5C,A)12.8Ah
Rated Voltage12.8V
Max Charge Voltage14.6V
Cut-Off Voltage8.4V
Standard Charge And Discharge Current5A
Max Continuous Charge Current10A
Loading, please wait...
Max Continuous Discharge Current10A
Weight (Approx. Includes Case)~1.55Kg
Impedance (Max, At 1000Hz.)≤70mΩ
Delivery Voltage≥12.8v
Charge Method (CC)10A,14.6VCut Off
Charge Method (CV)14.4V,0.25ACut Off

2.Bock diagram of lithium ion battery for solar storage

The product adopts PCM, same port input and output, supports single-cell voltage monitoring function, temperature monitoring function, grid connected pv system with battery storage, current monitoring function, and equalization function to ensure stable performance, safety and long-term use of the product.

Lithium Battery for Solar Energy Storage

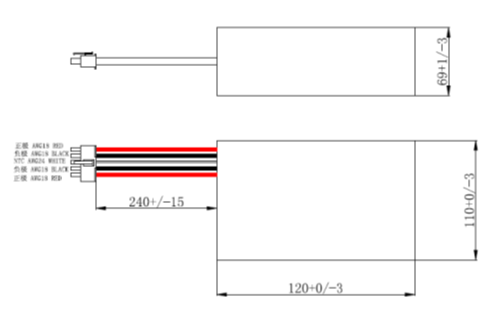

3.Outline Drawing of lithium ion battery for solar storage

The industry-leading process technology of the instrument ensures product size and adaptability. The maximum size is 69mm*110mm*120mm. It is compact and convenient. Externally connected with Molex terminals, it has a good foolproof effect, reduces the risk of short circuits, and is easy to use.

Pv with Battery Storage Simulink
