76.8V 28.8Ah LFP UPS Battery

Part number:

192V 6Ah LFP UPS Battery

Features:

• The service cycle life of LiFePO4 UPS battery is nearly 10 times that of lead-acid battery and the comprehensive evaluation is higher.
• LiFePO4 UPS battery supports high rate discharge and fast charging.
• LiFePO4 UPS battery with the same specification and capacity, the volume is about 2/3 of that of lead-acid battery,and the weight is about 1/3.
• Able to withstand over-charge and over-discharge. No fire no explosion. Safe and reliable.
• PACK can conform to UL & CE standards.

76.8V 28.8Ah LFP UPS Battery UPS Battery

1.Specification of lithium ion battery storage

Loading, please wait...
Item
Parameter
Model192V 6Ah LFP UPS Battery
Energy(25℃/0.2C)1152Wh
BMS functionUVP/OVP/OCP/OTP/SCP/Balance
BMS schemeSoftware
CommunicationRS485/RS232
Charging current3A
Max charging current6.5A
Max continue discharging50A
Internal resistance(fullycharged,25℃)≤160mΩ
Approx.weight17.8Kg
Charging modeCC-CV
Max charging voltage219V
Loading, please wait...
Item
Parameter
Self-discharge(25℃)3 monthRemaining capacity:95%
Self-discharge(25℃)6 monthRemaining capacity:90%
Self-discharge(25℃)12 monthRemaining capacity:85%
Nominal operating25℃±3℃(77℉±5℉)
Operating temperature(Discharge)-20℃~75℃(-4℉~167℉)
Operating temperature(Charge)0℃~60℃(32℉~140℉)
Operating temperature(Storage)0℃~40℃(32℉~104℉)
Discharge cut-off voltage150V
Cell materialLiFeP04
Cell ModeIFR26650-36A/3600mAh
Cell standardsCB/UL1642/BIS/UN38.3/RoHS
Shell materialSPCC
ApplicationLead-acid alternative,Uninterrupted Power Supply
Designed calendar life(20℃)10 years

2.Bock diagram of lithium ion battery storage

The product adopts software protection scheme, supports RS485 and RS232 communication; adopts the SOC estimation method of ampere integral method combined with open circuit voltage method to make the SOC estimation result more accurate; supports single cell voltage monitoring function, temperature monitoring function, current monitoring function and equalization Functions, etc., make the product have excellent performance and excellent stability, and ensure the long-term safe use of the product.

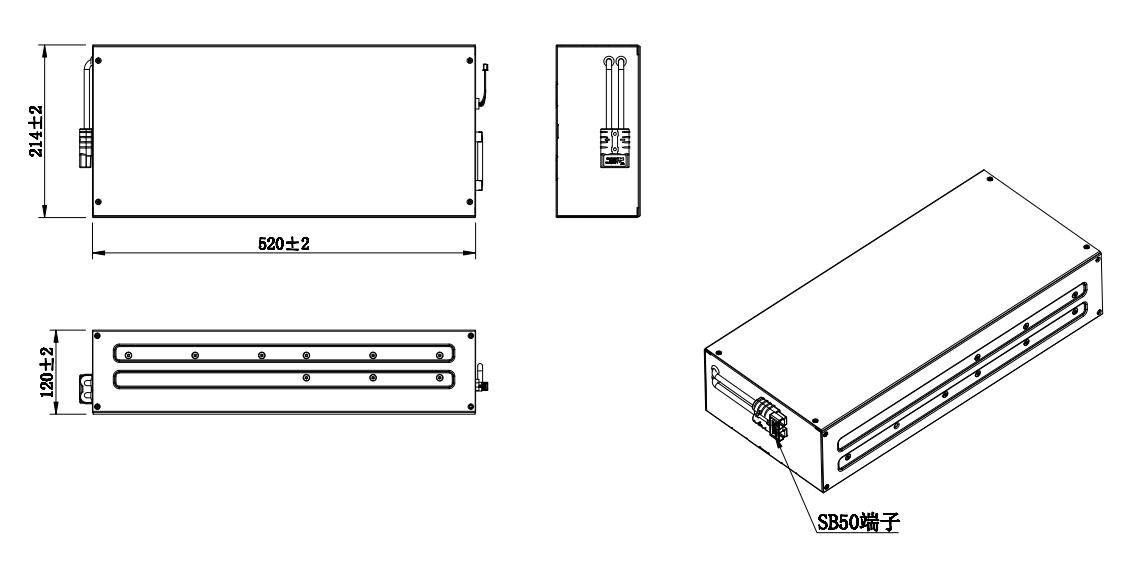

3.Outline Drawing of lithium ion battery storage

Use PLB high-quality high-rate 26650 cells, support up to 20C discharge, strengthen over-current technology, and full-iron box packaging. The reinforced insulation design can meet the 6KV high voltage impact, effectively ensuring the safety of users. The module size is 570~650mm*438mm*86mm, with separate external ports, which is convenient to use.
