12.8V 6Ah LFP UPS Battery 2
• The service cycle life of LiFePO4 UPS battery is nearly 10 times that of lead-acid battery and the comprehensive evaluation is higher.
• LiFePO4 UPS battery supports high rate discharge and fast charging.
• LiFePO4 UPS battery with the same specification and capacity, the volume is about 2/3 of that of lead-acid battery,and the weight is about 1/3.
• Able to withstand over-charge and over-discharge. No fire no explosion. Safe and reliable.
• PACK can conform to UL & CE standards.
Item | Parameter |
|---|---|
| Model | 12.8V 6Ah LFP UPS Battery 2 |
| Energy（25℃/0.2C） | 76.8Wh |

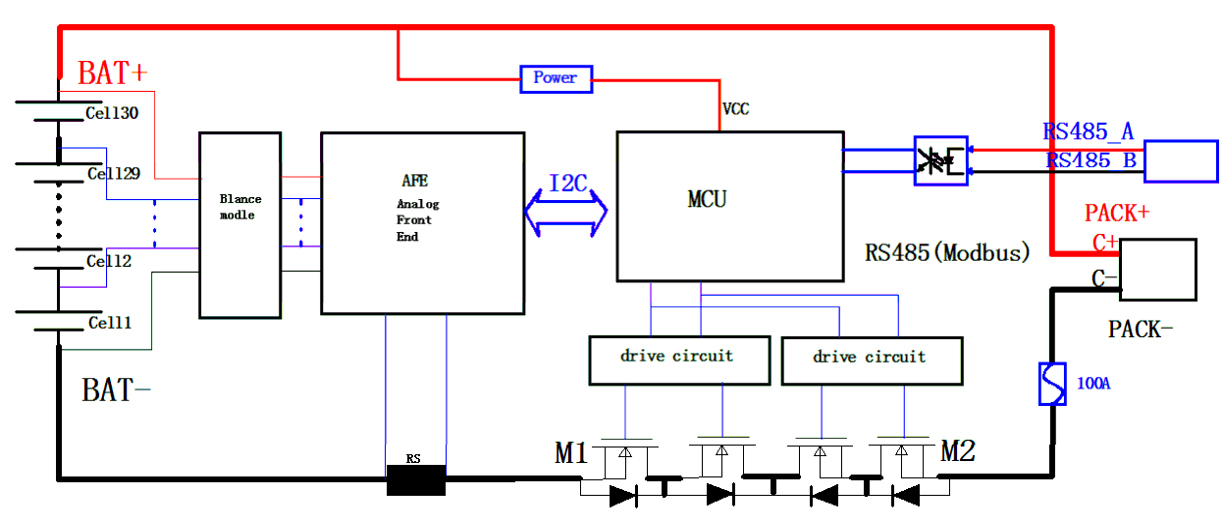

| BMS function | UVP/OVP/OCP/OTP/SCP/Balance |
| BMS scheme | Hardware |
| Charging current | 3A |
| Max charging current | 6A |
| Max continue discharging | 45A |
| Internal resistance(fullycharged,25℃) | ≤35mΩ |
| Approx.weight | 1.8Kg |
| Charging mode | CC-CV |
| Max charging voltage | 14.6V |
Item | Parameter |
|---|---|
| Self-discharge（25℃）3 month | Remaining capacity：95% |
| Self-discharge（25℃）6 month | Remaining capacity：90% |
| Self-discharge（25℃）12 month | Remaining capacity：85% |
| Nominal operating | 25℃±3℃（77℉±5℉） |
| Operating temperature（Discharge） | -20℃~75℃（-4℉~167℉） |
| Operating temperature（Charge） | 0℃~60℃（32℉~140℉） |
| Operating temperature（Storage） | 0℃~40℃（32℉~104℉） |
| Discharge cut-off voltage | 10V |
| Cell material | LiFeP04 |
| Cell Mode | IFR26650-30B/3000mAh |
| Cell standards | CB/UL1642/BIS/UN38.3/RoHS |
| Shell material | ABS+PC |
| Application | Lead-acid alternative,Uninterrupted Power Supply |
| Designed calendar life（20℃） | 10 years |
Use PLB high-quality high-rate 26650 batteries, support up to 20C discharge, ABS+PC plastic mold shell, internally strengthened over-current process, temperature rise is very small, to meet the user's daily safety, blind hole shell, glue sealing, can meet IP65 Require. The module size is 150mm*65mm*96mm, easy to install, suitable for most environments.
Use PLB high-quality high-rate 26650 batteries, support up to 20C discharge, ABS+PC plastic mold shell, internally strengthened over-current process, temperature rise is very small, to meet the user's daily safety, blind hole shell, glue sealing, can meet IP65 Require. The module size is 150mm*65mm*96mm, easy to install, suitable for most environments.
