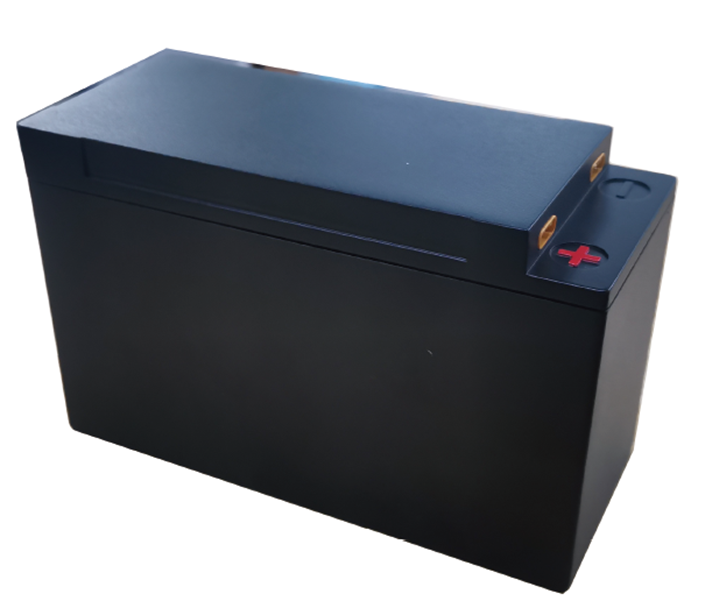

12.8V 6Ah LFP UPS Battery

Part number:

12.8V 6Ah LFP UPS Battery


• The service cycle life of LiFePO4 UPS battery is nearly 10 times that of lead-acid battery and the comprehensive evaluation is higher.
• LiFePO4 UPS battery supports high rate discharge and fast charging.
• LiFePO4 UPS battery with the same specification and capacity, the volume is about 2/3 of that of lead-acid battery,and the weight is about 1/3.
• Able to withstand over-charge and over-discharge. No fire no explosion. Safe and reliable.
• PACK can conform to UL & CE standards.
Can support max 4pcs series and 10pcs parallel.

1.Specification of lithium ion battery storage

Loading, please wait...
Model12.8V 6Ah LFP UPS Battery
BMS functionUVP/OVP/OCP/OTP/SCP/Balance
BMS schemeSoftware
Charging current3A
Max charging current6A
Max continue discharging50A
Internal resistance(fullycharged,25℃)≤30mΩ
Charging modeCC-CV
Max charging voltage14.6V
Loading, please wait...
Self-discharge(25℃)3 monthRemaining capacity:95%
Self-discharge(25℃)6 monthRemaining capacity:90%
Self-discharge(25℃)12 monthRemaining capacity:85%
Nominal operating25℃±3℃(77℉±5℉)
Operating temperature(Discharge)-20℃~75℃(-4℉~167℉)
Operating temperature(Charge)0℃~60℃(32℉~140℉)
Operating temperature(Storage)0℃~40℃(32℉~104℉)
Discharge cut-off voltage10V
Cell materialLiFeP04
Cell ModeIFR26650-30B/3000mAh
Cell standardsCB/UL1642/BIS/UN38.3/RoHS
Shell materialSPCC
ApplicationLead-acid alternative,Uninterrupted Power Supply
Designed calendar life(20℃)10 years

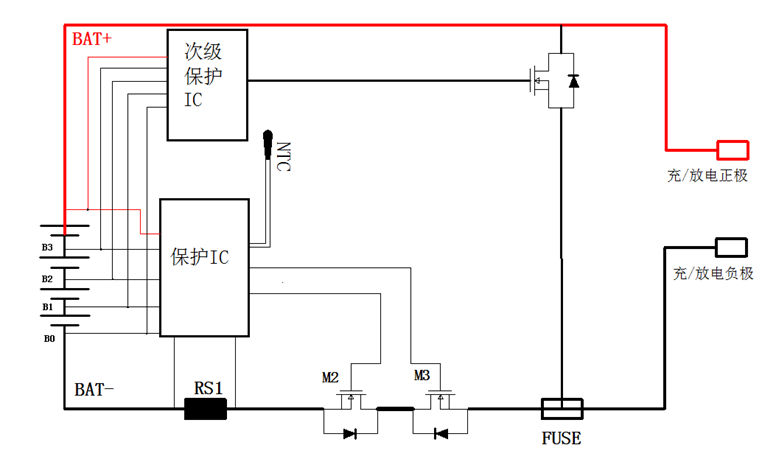

2.Bock diagram of lithium ion battery storage

The product adopts software protection scheme, supports RS485 and UART communication; adopts the SOC estimation method of ampere integral method combined with open circuit voltage method to make the SOC estimation result more accurate; supports single cell voltage monitoring function, temperature monitoring function, current monitoring function and equalization Functions, etc., make the product have excellent performance and excellent stability, and ensure the long-term safe use of the product.

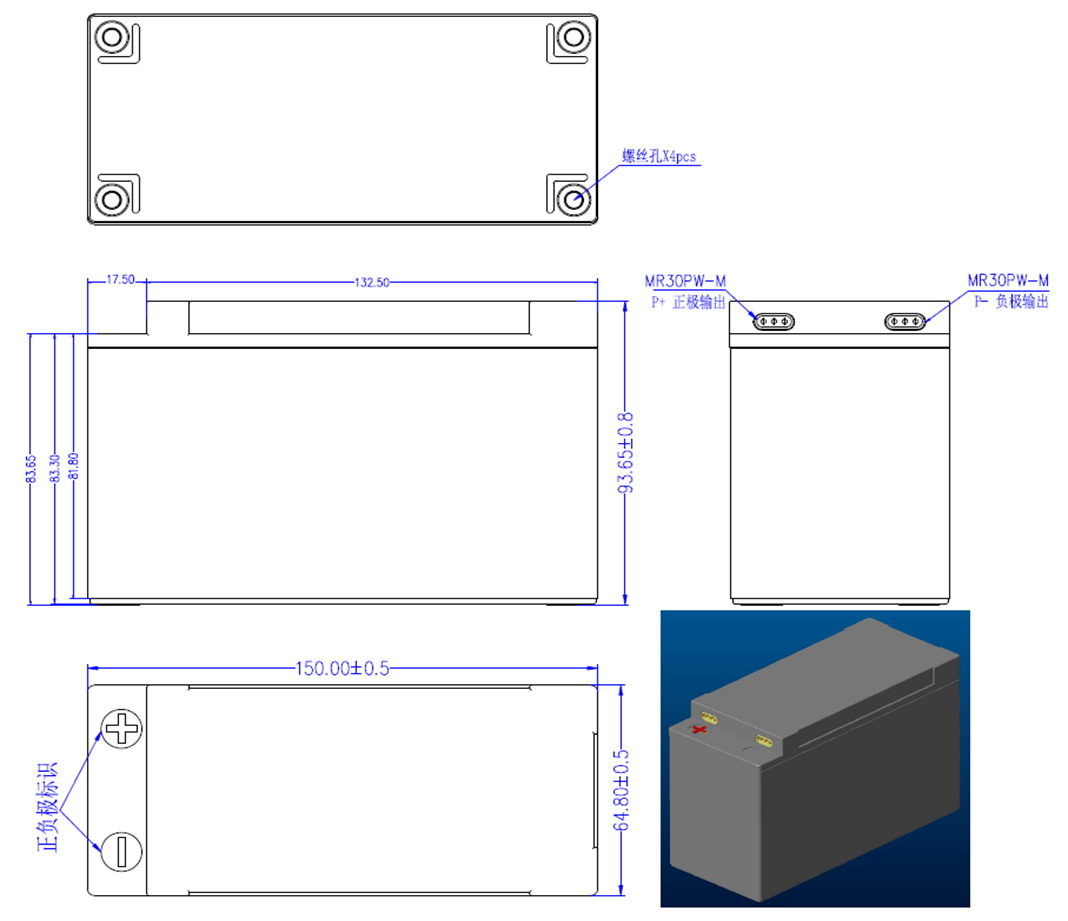

3.Outline Drawing of lithium ion battery storage

Use PLB high-quality 26650 high-rate cells, support up to 20C discharge, strengthen over-current technology, and full-iron box packaging. Reinforced insulation design, it can meet 6KV high voltage impact and effectively ensure user safety. The module size is 167mm*208mm*35mm, small and exquisite, easy to install.
