Part number of solar street light lithium battery:
12.8V 23.1Ah LFP Battery
Features of solar street light lithium battery:
• Energy storage system Lithuim-ion battery Pack
• Use in Solar street light ect.
• Protection IC，stable working
• Long running life, High stability, Low maintenance costs.
• IP42 Rating
• Portection with Overcharge / Overdischarge / Overcurrent / Short circuit / temperature protection to ensure safety while using
• Wide operating temperature range
• RoHS eco-friendly design
• Cell approved by UL1642, IEC62133, UN38.3 certification
• PCM & cell double protection to ensure the battery safety
Item | Parameter |
|---|---|
| Model | 12.8V 23.1Ah LFP Battery |
| Model Capacity | 23.1Ah |
| Minimum Capacity (0.5C，A) | 22.4Ah |
| Rated Voltage | 12.8V |
| Max Charge Voltage | 14.6V |
| Cut-Off Voltage | 8.4V |
| Standard Charge And Discharge Current< | 8A |
Item | Parameter |
|---|---|
| Max Continuous Charge Current | 10A |
| Max Continuous Discharge Current | 10A |
| Weight (Approx. Includes Case) | ～2.8Kg |
| Impedance (Max, At 1000Hz.) | ≤120mΩ |
| Delivery Voltage | ≥12.8v |
| Charge Method (CC) | 4.6A,14.6VCut Off |
| Charge Method (CV) | 14.6V,0.46ACut Off |

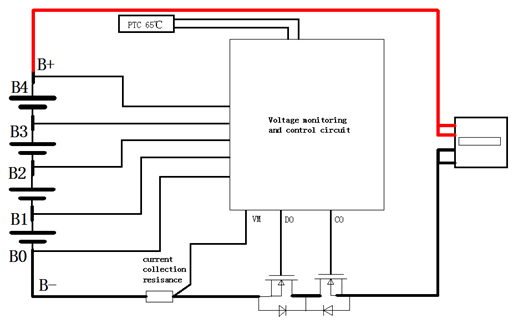

The product adopts PCM, input and output at the same port, supports single-cell voltage monitoring, temperature monitoring, current monitoring, and equalization functions to ensure stable performance, safety and long-term use of the product.
Made with industry-leading technology, the size of the module is reduced to the minimum, the product size is 197.4mm*267.4mm*29mm, waterproof terminal, and glue sealing process, supporting IP45 waterproof.
