Part number:

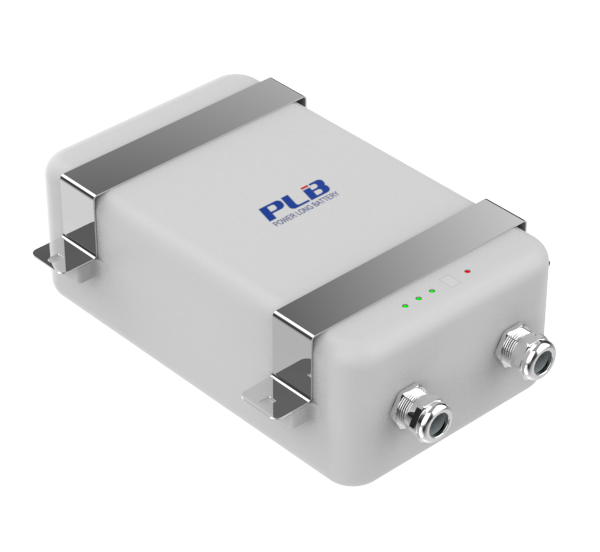

12.8V 33Ah LFP Battery

Features:

• Energy storage Lithuim-ion battery Pack
• Use in Solar street light, Home Energy storage system, ect
• Protection IC，stable working
• Long running life, High stability, Low maintenance costs
• IP45 Rating
• Portection with Overcharge / Overdischarge / Overcurrent / Short circuit / temperature protection to ensure safety while using
• Wide operating temperature range
• RoHS eco-friendly design
• Fullfil all DC12V power supply
• 4 grade LED battery indicator dispaly
• Cell approved by UL1642, IEC62133, UN38.3 certification
• PCM & cell double protection to ensure the battery safety

1.Specification of solar lighting battery：

Loading, please wait...

Item	Parameter
Model	12.8V 33Ah LFP Battery
Model Capacity	33Ah
Minimum Capacity (0.5C，A)	32Ah
Rated Voltage	12.8V
Max Charge Voltage	14.6V
Cut-Off Voltage	8.4V
Standard Charge And Discharge Current	8A
Max Continuous Charge Current	15A

Loading, please wait...

Item	Parameter
Max Continuous Discharge Current	15A
Weight (Approx. Includes Case)	～2.5Kg
Impedance (Max, At 1000Hz.)	≤80mΩ
Delivery Voltage	≥12.8v
Charge Method (CC)	13.2A,14.6VCut Off
Charge Method (CV)	14.6V,0.32ACut Off

2.Bock diagram of solar lighting battery：

The product adopts PCM, separate input and output, supports single-cell voltage monitoring function, temperature monitoring function, current monitoring function, and equalization function to ensure stable performance, safety and long-term use of the product.

3.Outline Drawing of solar lighting battery：

Made with industry-leading technology, the size of the module is reduced to the minimum. The open-molded plastic shell supports IP45 waterproof, and the size is 160mm*196mm*270mm. Separate charging and discharging design, convenient and fast charging and discharging.

4.Solar Street Light Battery Replacement：

Using high-quality lithium iron phosphate cell as the main material, supplemented by leading manufacturing technology, the finished battery pack can seamlessly replace the original solar lead-acid batteries and solar ternary batteries. It has a long cycle life and can be adapted to many Kind of high temperature environment. Small size and easy to disassemble, it is the best choice for replacing solar lead-acid batteries.
